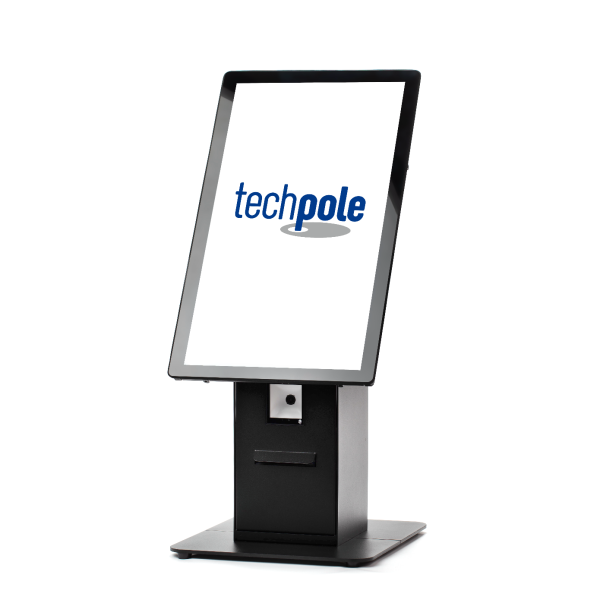

Queue Management & Check-in Kiosk - Tech K4 Model
The Queue Management & Check-in Kiosk - Tech K4 is perfect for queue management and check-in in hotels, airports and restaurants. Our product saves space, time and reduce payroll expenditure, streamlining customers queues at peak times. It is fully customisable and it can accommodate any front exit printer and scanner inside the kiosk.
What you need to know about the Queue Management & Check-in Kiosk - Tech K4
Dimensions:
- Height: 534,3 mm.
- Depth: 160 mm.
- Width: 149.50 mm
- Monitor Tilit: 30º.
- Diameter for POS mount/handheld scanner hole: 5,2 cm.
- VESA 100 Mount for touch screen monitors.
- Monitors sizes vary from 15” to 19”.
- Built-in scanner mount.
- Arm attached to the side panel for handheld scanner holder.
- The printer protected inside the trunk has a front paper exit.
- The kiosk can be made to accommodate different printer models.
- Replace the printer paper rolls from lockable front door.

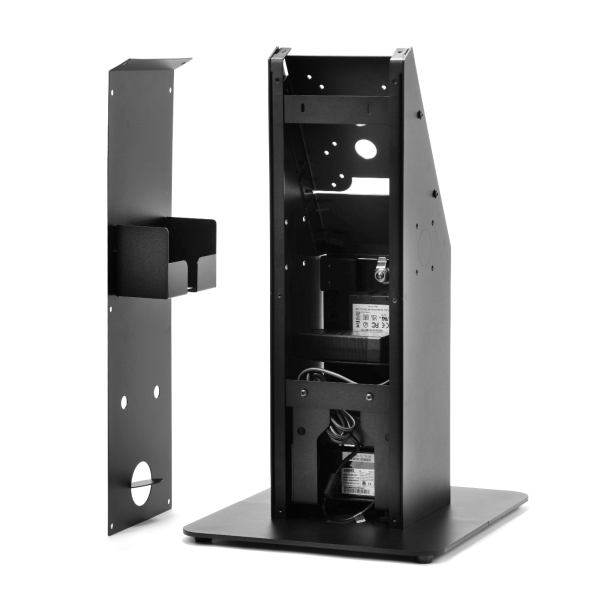

- Printer and scanner mounts inside the trunk.

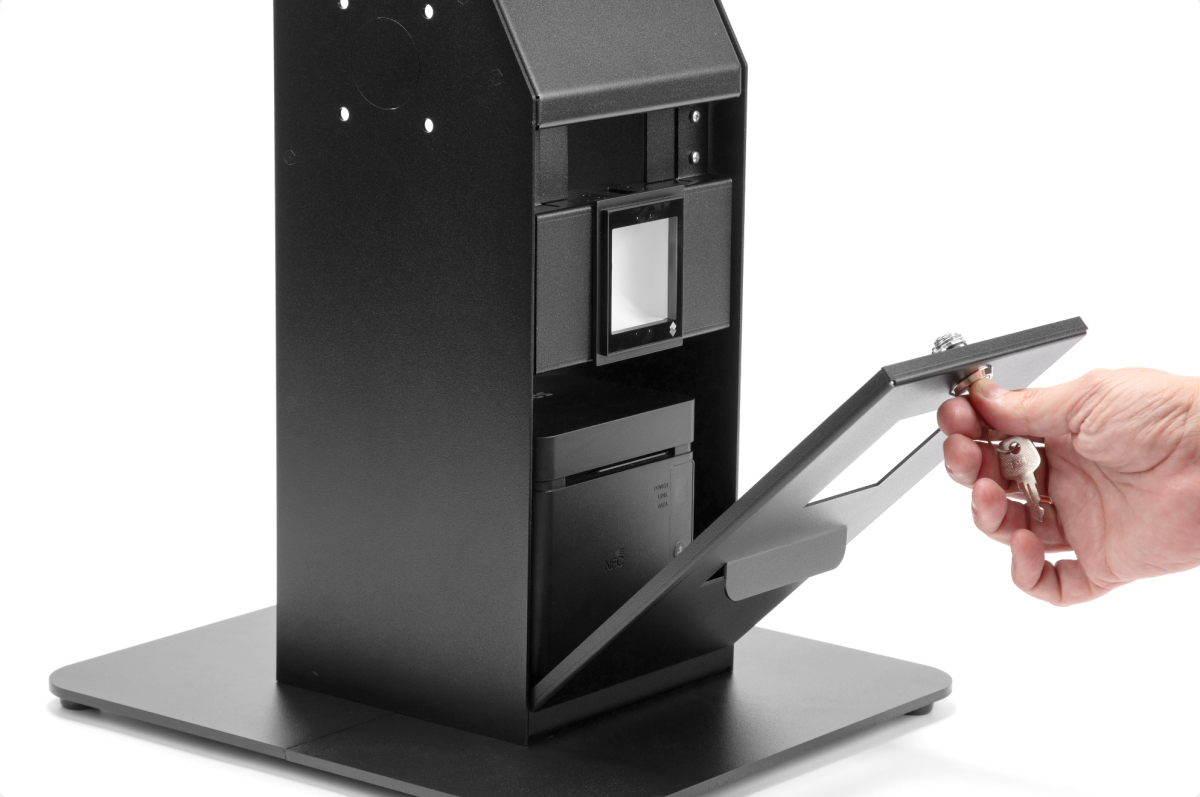

- Access to printer and scanner through lockable kiosk front door.
- Dimensions: 14,95 x 53,43 cm.
- Removable back cover for easy acces for cable management of the different peripherals.
- Inside the trunk there is enough space to accommodate a mini PC and power supplies.
- Scanner holder attached to the backplate.
- Second cable exit hole on the lower part of the back cover.
- Back cover secured to the kiosk with screws.
- Base dimensions: 62 x 35 cm with a cable exit middle hole (diameter of 5 cm).
- The kiosk weight provides stability.
- The trunk sits on a metal square base with rubber feet bumpers.
Printer and scanner models to install:
- Scanner: Datalogic GFS 4470 2D and Newland NLS-FM3080.
- Printer: Epson TMT 70 II, SAM 4S Cube, Epson TM-M3II, HPRT TP808, CHD TM-TM508, CPE K3 F ETH.
